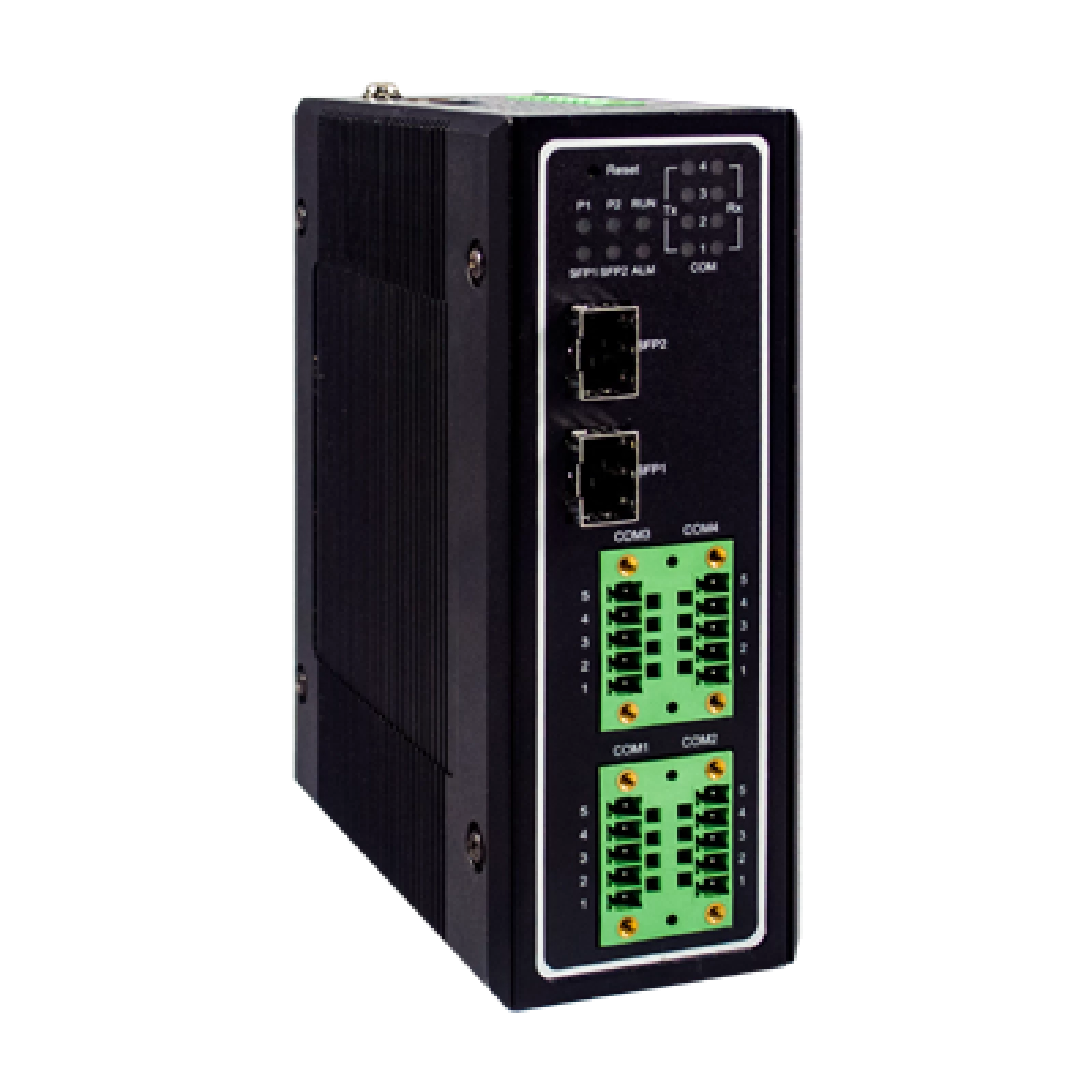

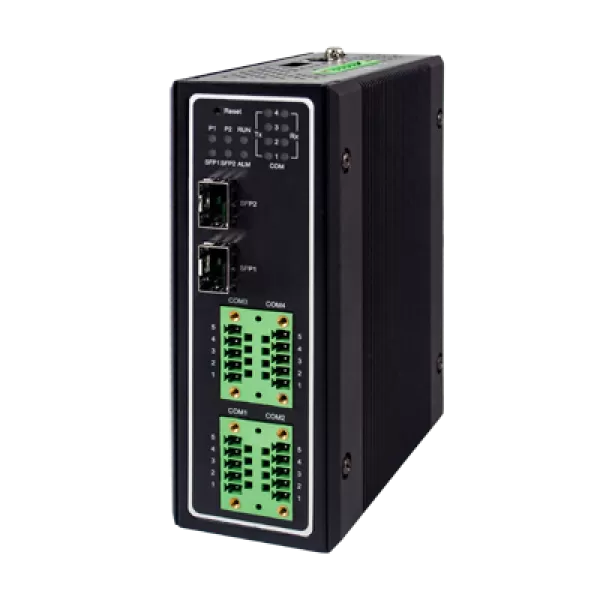

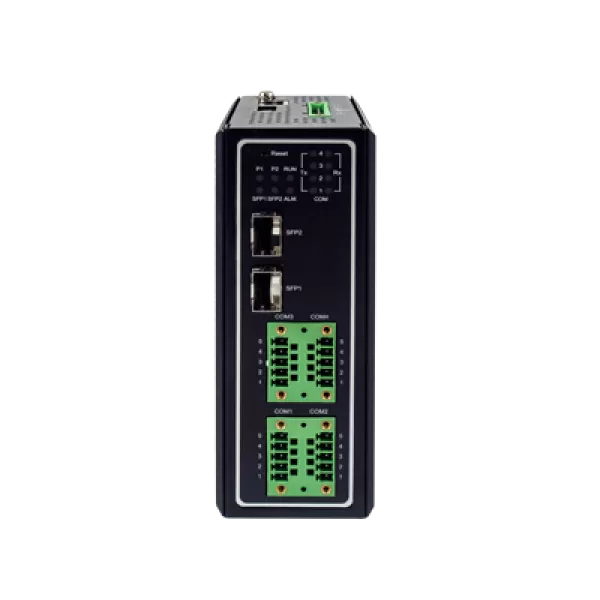

PG5904D Series
4-Port RS232/485/422 and 2 x Fast-Ethernet or Gigabit RJ45, DNP3.0, Modbus, IEC 60870-5-101/103/104, IEC 61850 Smart Grid Protocol Gateway
- Dual 10/100 Mbps Ethernet port, with optional PoE PD or 100/1000 Mbps SFP Slot
- 4-port RS-232/422/485, baud rate up to 921.6 Kbps, D-Sub9 or Terminal Block, Optional 3kV Serial Isolation
- IP30 Metal housing with Aluminum heat sink
- Redundant DC power input, one Relay Output
- Strong EMC protection, works in environments from -40 to 85°C
- Same hardware platform for different protocol conversion (Modbus TCP/RTU/ASCII, DNP3.0 TCP or serial, IEC 60870-5-101, IEC 60870-5-103, IEC 60870-5-104, IEC 61850)
- Optional Full-License version for simultaneous transformation of multiple protocols
- User friendly configuration with a Java-Based Windows utility
- Embedded PPTP, IPsec VPN or OpenVPN for enhanced security
Product Description The PG59XX Series is a highly reliable and fault tolerant Industrial Protocol Gateway. Its powerful architecture provides seamless conversion between the different protocols Ethernet or Serial based. The serial devices communicating on different protocols could be integrated into the system and extend its reach over the gateway’s redundant Ethernet. This device is designed to work in most demanding industries such as power substations, power generation, oil and gas, farming and manufacturing. The configuration carried out through a use friendly, Java- Based Windows Utility called eNode Designer. It allows configuring target platforms, set device properties and protocol data point mapping. To do so, a project file representing the system should be created. This will include devices and the protocol applications running on them. The configuration is completely dependent on the “eNode Module” which represents that device or application – but may include things such as changing the communication port settings and defining where data point information enters and leaves the eNode Designer system. PG59XX Series embeds an additional layer of security, allowing the devices to be deployed in topologies that request data to flow through the Internet and preventing sensitive control and monitoring data to be readable from malicious activities. IPsec VPN encryption, configurable in both peer-to-peer and peer-to-side modes will make sure the data passing is encrypted through a strong 128, 192 or 256-bit AES encryption. An additional highlight of ATOP protocol gateways is the ability to enable multiple protocols simultaneously. In contrast to conventional gateways, which require predefinition of a single master and slave protocol each, the Full-License model allows users to transform multiple incoming protocols in our protocol base to others compatible with the output side, achieving powerful protocol conversion functions, flexible operations, and easier maintenance. Application The protocol gateway’s embedded protocol stacks allow - Seamless conversion - Exception/error Management - Unsolicited event management for the protocols requiring them (such as DNP3) - High performance - Low cost
The example shows how to Easily connect a Modbus Serial HMI, through ATOP’s Protocol Gateway to a IEC60870-5-101 Serial Slave RTU. The host HMI has the role of a Modbus Serial Master while the end-device to be accessed is a IEC60870-5-101 Serial Slave. ATOP’s protocol Gateway acts towards the HMI seamlessly as a Modbus Serial Slave, answering the poll commands or the write commands required by the Host by its virtual Modbus ID. Meanwhile, it acts as a IEC60870-5-101 Serial Master, with regard to the end-device whose 101 address is mapped to the virtual Modbus ID that the HMI is accessing. Be careful! – all gateway functions listed in the datasheet refer to the “Gateway” role, and not which “host” or “slave” the gateway is connected to. In this example, the SKU shown is “MBSS-01SM” (Modbus Serial Slave to IEC60870-5-101 Serial Master)
The example shows how to Easily connect a Modbus Serial HMI, through ATOP’s Protocol Gateway to a IEC60870-5-101 Serial Slave RTU. The host HMI has the role of a Modbus Serial Master while the end-device to be accessed is a IEC60870-5-101 Serial Slave. ATOP’s protocol Gateway acts towards the HMI seamlessly as a Modbus Serial Slave, answering the poll commands or the write commands required by the Host by its virtual Modbus ID. Meanwhile, it acts as a IEC60870-5-101 Serial Master, with regard to the end-device whose 101 address is mapped to the virtual Modbus ID that the HMI is accessing. Be careful! – all gateway functions listed in the datasheet refer to the “Gateway” role, and not which “host” or “slave” the gateway is connected to. In this example, the SKU shown is “MBSS-01SM” (Modbus Serial Slave to IEC60870-5-101 Serial Master)| Network Interface | |
|---|---|
| Speed | IEEE 802.3 10BaseT IEEE 802.3u 100BaseT(X) IEEE 802.3u for 100Base-X (SFP version only) IEEE 802.3z for 1000Base-X (SFP version only) |
| PoE standard supported | IEEE 802.3 af (-PoE version only) |
| LAN Mode | Dual Subnets or Network Redundancy |
| Connector ports | 2x 10/100BASE-T(X) RJ-45 or 2x 100/1000 Base-X SFP Slots (SFP version) |
| Serial Interface | |
|---|---|
| Connector | 1x2 5 pin 3.81mm Terminal Block, or D-sub9 connector |
| Ports | 4 |
| Mode | RS-232/422/485, software selectable |
| Baud Rate | 1,200~921,600 bps |
| Parity | None, Odd, Even |
| Data Bits | 7,8 |
| Stop Bits | 1,2 |
| Isolation | 2 KV |
| Other Interfaces | |
|---|---|
| USB Ports | 1 |
| Speed | USB 2.0 |
| Connector | USB A Type |
| Software | |
|---|---|
| Protocols | IPv4, ARP, ICMP, TCP, UDP, DHCP Client, DNS Client, Telnet, HTTP, HTTPS, SMTP/TLS, SNMP v1/v2c/v3, Syslog, 802.1D-2004 RSTP, OpenVPN or IPsec VPN (peer-to-peer or peer-to-side), with a maximum VPN throughput of 37.9Mbps(*), and PPTP |
| Configuration | Atop Management Utility, Web UI, Telnet, Serial Console, ATOP eNode Designer |
| Protocol setting | eNode designer |
| Supported Protocols | Modbus TCP/RTU/ASCII, DNP3.0 over serial and TCP/IP, IEC61850, IEC60870-5-101, IEC60870-5-103, IEC60870-5-104 |
| Protocol specifications | Refer to datasheet |
| Power | Value |
|---|---|
| Input Voltage | Dual 12 - 48VDC (non-PoE Models); or through Ethernet Cable (PoE versions) |
| Input Current (@ 12VDC) | 0.65 A @ 12 VDC |
| Power Consumption | Approximately 8 W (Max) |
| Connector | 7-Pin 5.08mm Lockable Terminal Block |
| Power Redundancy | Yes |
| Reverse Polarity Protection | Yes |
| Relay Output | 1A @ 30 VDC (normal open) |
| Physical Characteristics | Value |
|---|---|
| Housing | IP30 SPCC housing |
| Dimension (W x H x D) | 55 x 145 x 113 mm |
| Weight | 1,000g |
| Installation | DIN-Rail , Wall mount (optional kit) |
| Reset Button | Yes |
| Environmental Limits | |
|---|---|
| Operating Temperature | -40°C~85°C (-40°F~185°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Ambient Relative Humidity | 5%~95%, 55°C (Non-condensing) |
| Certification | Standard |
|---|---|
| Safety | IEC/EN 61010-1, UL61010-1, IEC/EN 61010-2-201, UL61010-2-201, EN62368-1 |
| EMC | FCC Part 15, Subpart B, Class A EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-2, EN 61000-6-4 |
| Standard | Item | Test | Value | Level |
|---|---|---|---|---|
| IEC 61000-4-2 | ESD | Contact Discharge | ±6kV | 3 |
| IEC 61000-4-2 | ESD | Air Discharge | ±8kV | 3 |
| IEC 61000-4-3 | RS | 80-1000MHz | 10 V/m | 3 |
| IEC 61000-4-3 | RS | 1.4-2.0GHz | 3 V/m | 2 |
| IEC 61000-4-3 | RS | 2.0-2.7GHz | 1 V/m | 1 |
| IEC 61000-4-4 | EFT | DC Power Port | ±2.0kV | 3 |
| IEC 61000-4-4 | EFT | Signal Port | ±2.0KV | 4 |
| IEC 61000-4-5 | Surge | DC Power Port | Line-to Line±1.0KV | 3 |
| IEC 61000-4-5 | Surge | DC Power Port | Line-to Earth±1.0KV | 2 |
| IEC 61000-4-5 | Surge | Signal Port | Line-to Earth±2.0K | 3 |
| IEC 61000-4-6 | CS | 0.15-80MHz | 10 Vrms | 3 |
| IEC 61000-4-8 | PFMF | Enclosure | 30 A/m | 4 |
| Certification | Standard |
|---|---|
| Shock | MIL-STD-810G Method 516.7 |
| Drop (Freefall) | MIL-STD-810G Method 516.7 |
| Vibration | MIL-STD-810G Method 514.7 |
| RoHS | Yes |
| MTBF | 14.56 Years (according to MIL-HDBK-217F) |
| Warranty | 5 Years |
| HARDWARE | |
|---|---|
| PG5904D-4P-DB | Industrial 4-Port Protocol Gateway, 10/100BASE-T(X), DB9 |
| PG5904D-4P-TB | Industrial 4-Port Protocol Gateway, 10/100BASE-T(X), TB5 |
| PG5904D-4P-Sis | Industrial 4-Port Protocol Gateway, 10/100BASE-T(X), Isolation |
| PG5904D-4P-PoE-DB | Industrial 4-Port Protocol Gateway, 10/100BASE-T(X) with PoE, DB9 |
| PG5904D-4P-PoE-TB | Industrial 4-Port Protocol Gateway, 10/100BASE-T(X) with PoE, TB5 |
| PG5904D-4P-PoE-Sis | Industrial 4-Port Protocol Gateway, 10/100BASE-T(X) With PoE, Isolation |
| PG5904D-4P-G-DB-SFP | Industrial 4-Port Protocol Gateway, 100/1000BASE-X with SFP Slot, DB9 |
| PG5904D-4P-G-TB-SFP | Industrial 4-Port Protocol Gateway, 100/1000BASE-X with SFP Slot, TB5 |
| PG5904D-4P-G-Sis-SFP | Industrial 4-Port Protocol Gateway, 100/1000BASE-X with SFP Slot, Isolation |
| Protocols | |
|---|---|
| 01SS-03SM | IEC 60870-5-101 Serial Slave to IEC 60870-5-103 Serial Master |
| 01SS-04EC | IEC 60870-5-101 Serial Slave to IEC 60870-5-104 Ethernet Client |
| 01SS-50EC | IEC 60870-5-101 Serial Slave to IEC 61850 Client |
| 01SS-DNEC | IEC 60870-5-101 Serial Slave to DNP3 Ethernet Client |
| 01SS-DNSM | IEC 60870-5-101 Serial Slave to DNP3 Serial Master |
| 01SS-MBEC | IEC 60870-5-101 Serial Slave to Modbus Ethernet Client |
| 01SS-MBSM | IEC 60870-5-101 Serial Slave to Modbus Serial Master |
| 04ES-01SM | IEC 60870-5-104 Ethernet Server to IEC 60870-5-101 Serial Master |
| 04ES-03SM | IEC 60870-5-104 Ethernet Server to IEC 60870-5-103 Serial Master |
| 04ES-50EC | IEC 60870-5-104 Ethernet Server to IEC 61850 Ethernet Client |
| 04ES-DNEC | IEC 60870-5-104 Ethernet Server to DNP3 Ethernet Client |
| 04ES-DNSM | IEC 60870-5-104 Ethernet Server to DNP3 Serial Master |
| 04ES-MBEC | IEC 60870-5-104 Ethernet Server to Modbus Ethernet Client |
| 04ES-MBSM | IEC 60870-5-104 Ethernet Server to Modbus Serial Master |
| 50ES-01SM | IEC 61850 Ethernet Server to IEC 60870-5-101 Serial Master |
| 50ES-03SM | IEC 61850 Ethernet Server to IEC 60870-5-103 Serial Master |
| 50ES-04EC | IEC 61850 Ethernet Server to IEC 60870-5-104 Ethernet Client |
| 50ES-DNEC | IEC 61850 Ethernet Server to DNP3 Ethernet Client |
| 50ES-DNSM | IEC 61850 Ethernet Server to DNP3 Serial Master |
| 50ES-MBEC | IEC 61850 Ethernet Server to Modbus Ethernet Client |
| 50ES-MBSM | IEC 61850 Ethernet Server to Modbus Serial Master |
| DNES-01SM | DNP3 Ethernet Server to IEC 60870-5-101 Serial Master |
| DNES-03SM | DNP3 Ethernet Server to IEC 60870-5-103 Serial Master |
| DNES-04EC | DNP3 Ethernet Server to IEC 60870-5-104 Ethernet Client |
| DNES-50EC | DNP3 Ethernet Server to IEC 61850 Ethernet Client |
| DNES-DNSM | DNP3 Ethernet Server to DNP3 Serial Master |
| DNES-MBEC | DNP3 Ethernet Server to Modbus Ethernet Client |
| DNES-MBSM | DNP3 Ethernet Server to Modbus Serial Master |
| DNSS-01SM | DNP3 Serial Slave to IEC 60870-5-101 Serial Master |
| DNSS-03SM | DNP3 Serial Slave to IEC 60870-5-103 Serial Master |
| DNSS-04EC | DNP3 Serial Slave to IEC 60870-5-104 Ethernet Client |
| DNSS-50EC | DNP3 Serial Slave to IEC 61850 Ethernet Client |
| DNSS-DNEC | DNP3 Serial Slave to DNP3 Ethernet Client |
| DNSS-MBEC | DNP3 Serial Slave to Modbus Ethernet Client |
| DNSS-MBSM | DNP3 Serial Slave to Modbus Serial Master |
| MBES-01SM | Modbus Ethernet Server to IEC 60870-5-101 Serial Master |
| MBES-03SM | Modbus Ethernet Server to IEC 60870-5-103 Serial Master |
| MBES-04EC | Modbus Ethernet Server to IEC 60870-5-104 Ethernet Client |
| MBES-50EC | Modbus Ethernet Server to IEC 61850 Ethernet Client |
| MBES-DNEC | Modbus Ethernet Server to DNP3 Ethernet Client |
| MBES-DNSM | Modbus Ethernet Server to DNP3 Serial Master |
| MBSS-01SM | Modbus Serial Slave to IEC 60870-5-101 Serial Master |
| MBSS-03SM | Modbus Serial Slave to IEC 60870-5-103 Serial Master |
| MBSS-04EC | Modbus Serial Slave to IEC 60870-5-104 Ethernet Client |
| MBSS-50EC | Modbus Serial Slave to IEC 61850 Client |
| MBSS-DNEC | Modbus Serial Slave to DNP3 Ethernet Client |
| MBSS-DNSM | Modbus Serial Slave to DNP3 Serial MasterMBSS-MBEC |
| FL | Allows a model to run single or multiple protocol(s) in both front-end to SCADA and back-end to IED sides |
| Optional Accessories | ||
|---|---|---|
| SDR-75-24 | 50500752240001G | 75W/3.2A DIN-Rail 24VDC power supply with 88~264VAC / 124~370VDC input |
| CBL-RJ45(8P)-DB9(F)-90-C | 50891971G | 8-pin RJ45-DB9 debug cable, 90cm |
| ADP-DB9(F)-TB5 | 59906231G | Female DB9 to Female 3.81 TB5 Converter |
| GDC-120 | 59906861G | 120mm copper woven grounding cable |
| WMK-450-Black | 70100000000052G | Aluminum wall mount kit |
| LM28-C3S-TI-N | 50708031G | SFP Transceiver, 1250Mbps, 850nmVCSEL, Multi-mode, 550m, 3.3V, -20~85°C |
| LM38-C3S-TI-N | 50709411G | SFP Transceiver, 1250Mbps, 1310nmFP, Multi-mode, 2km, 3.3V, -40~85°C |
| LS38-C3S-TI-N | 50709391G | SFP Transceiver, 1250Mbps, 1310nmFP, Single-mode, 10km, 3.3V, -40~85°C |
| LS38-C3L-TI-N | 50709441G | SFP Transceiver, 1250Mbps, 1310nmDFB, Single-mode, 30km, 3.3V, -40~85°C |
