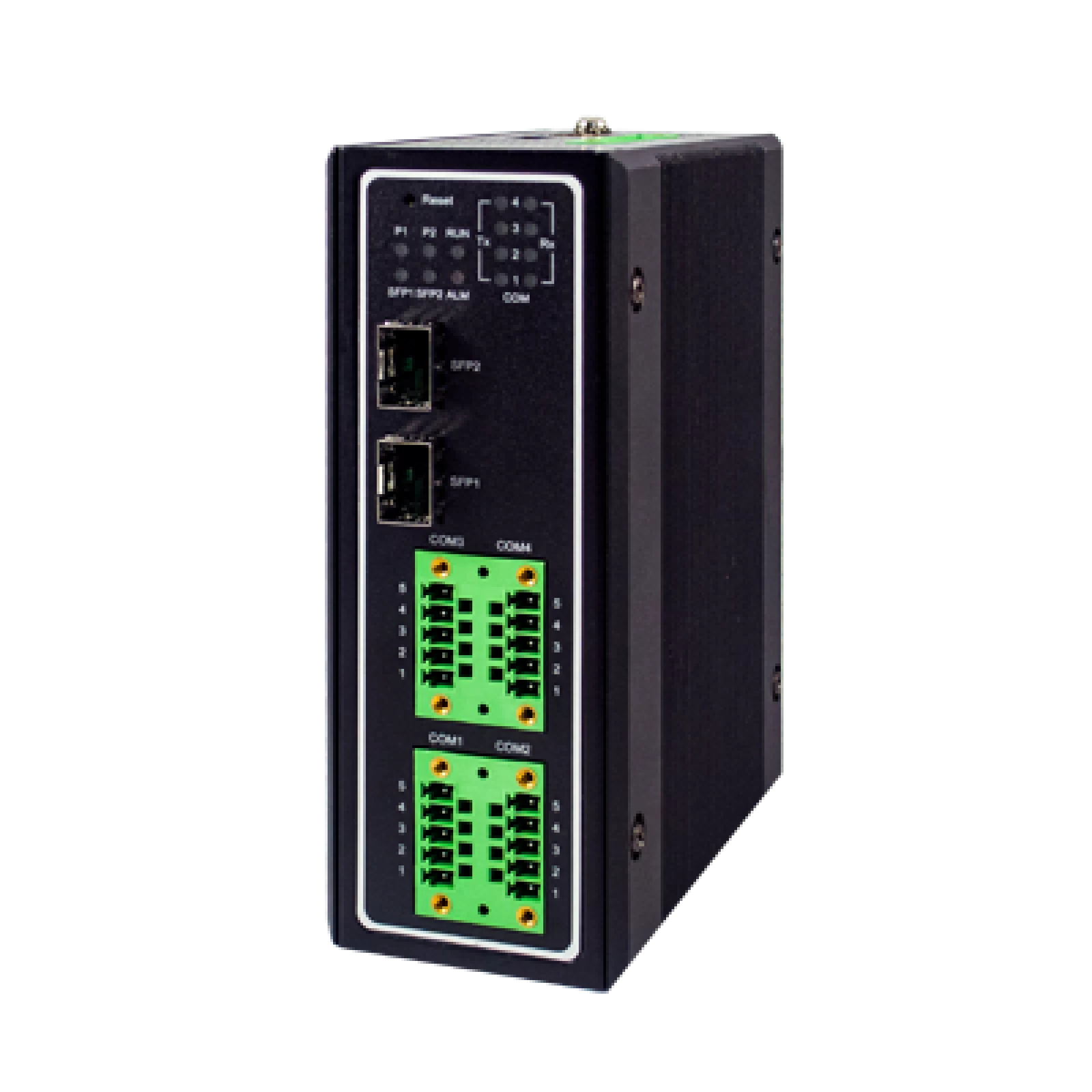

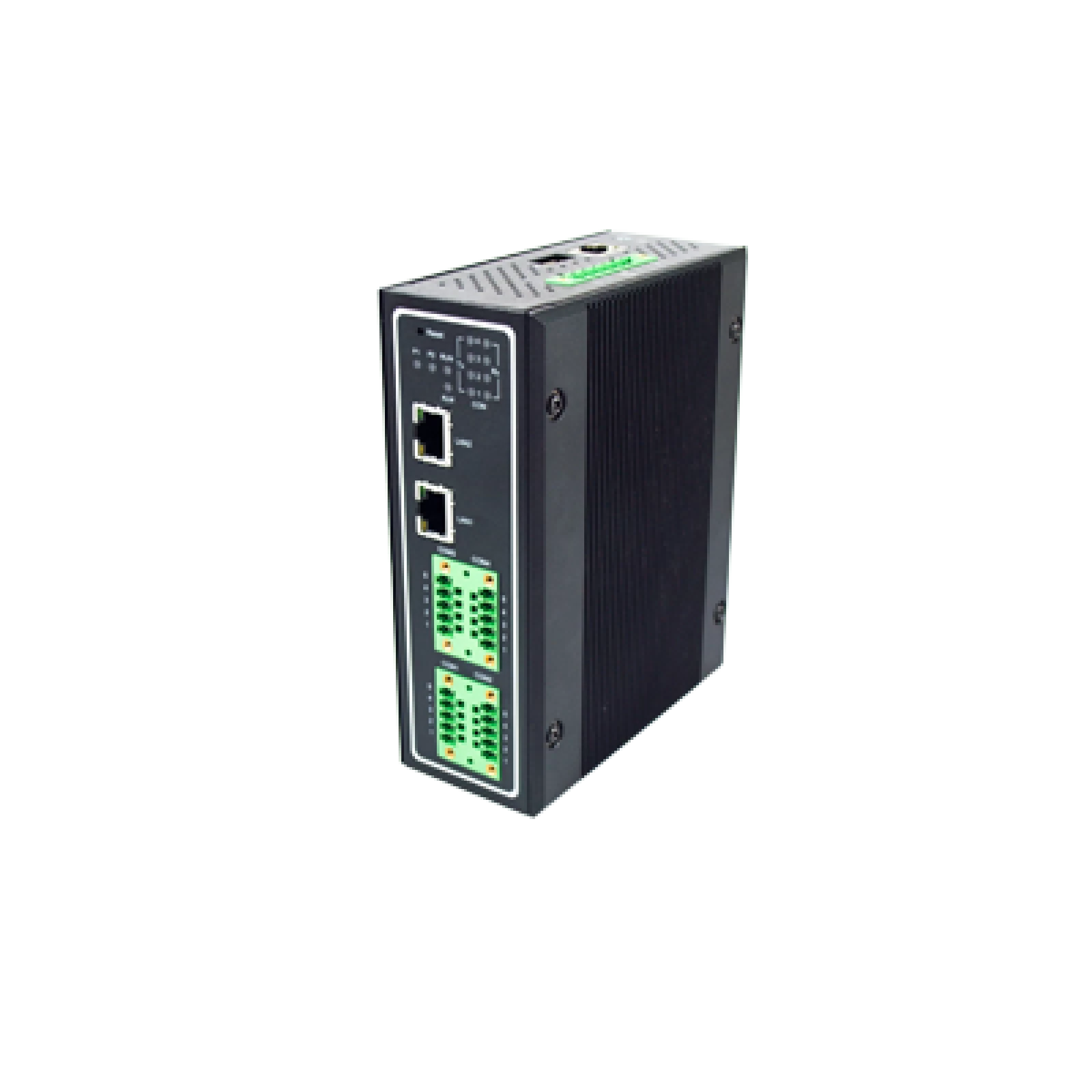

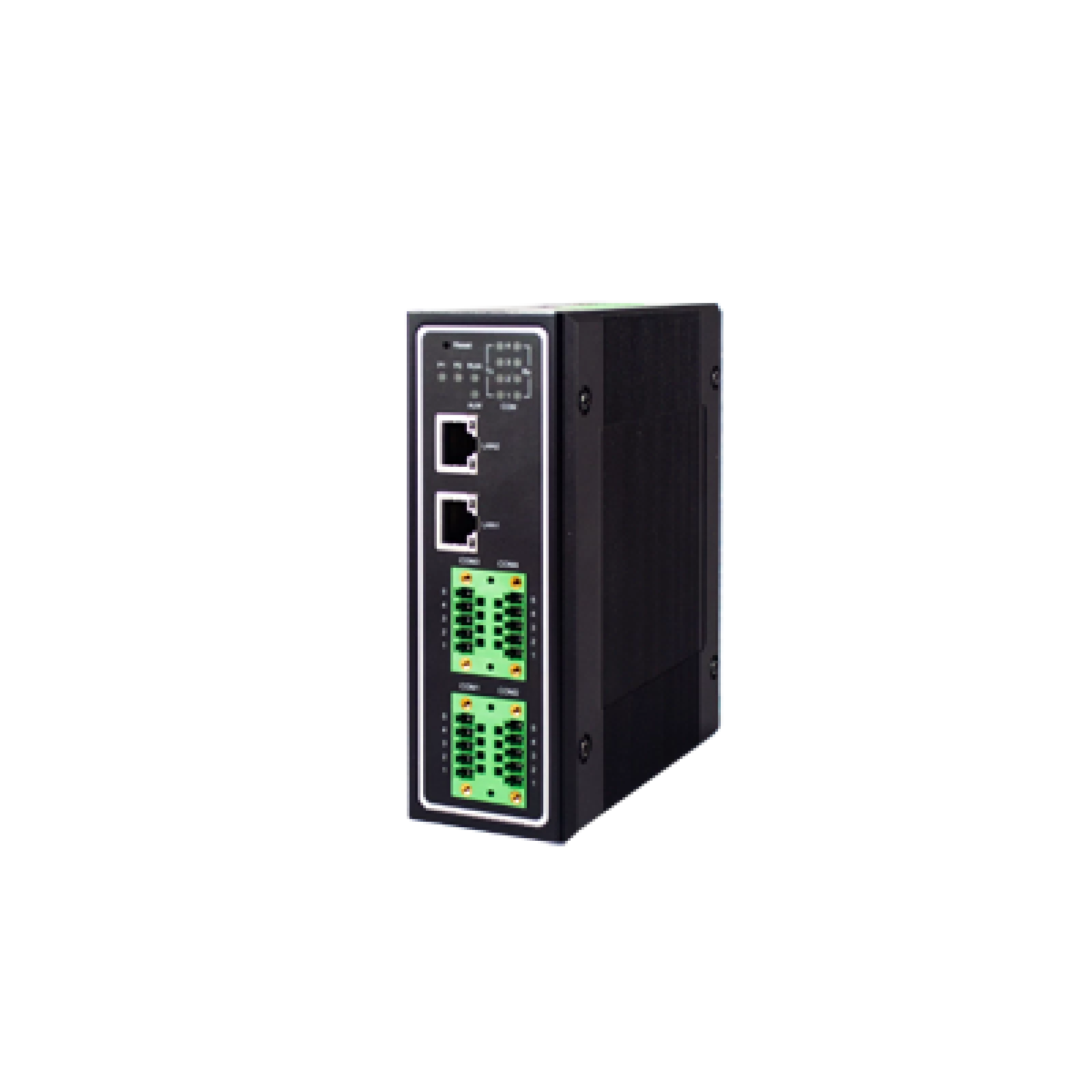

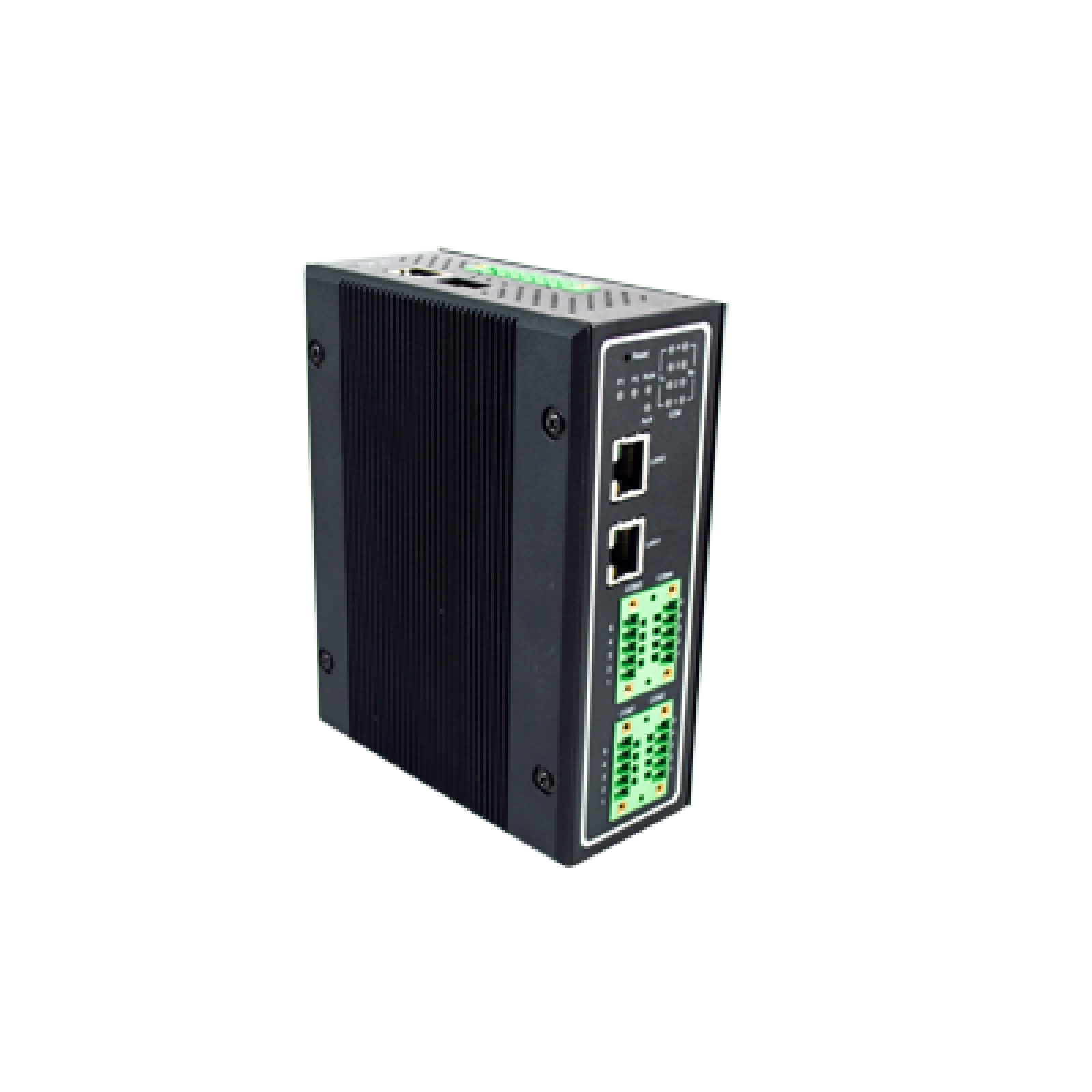

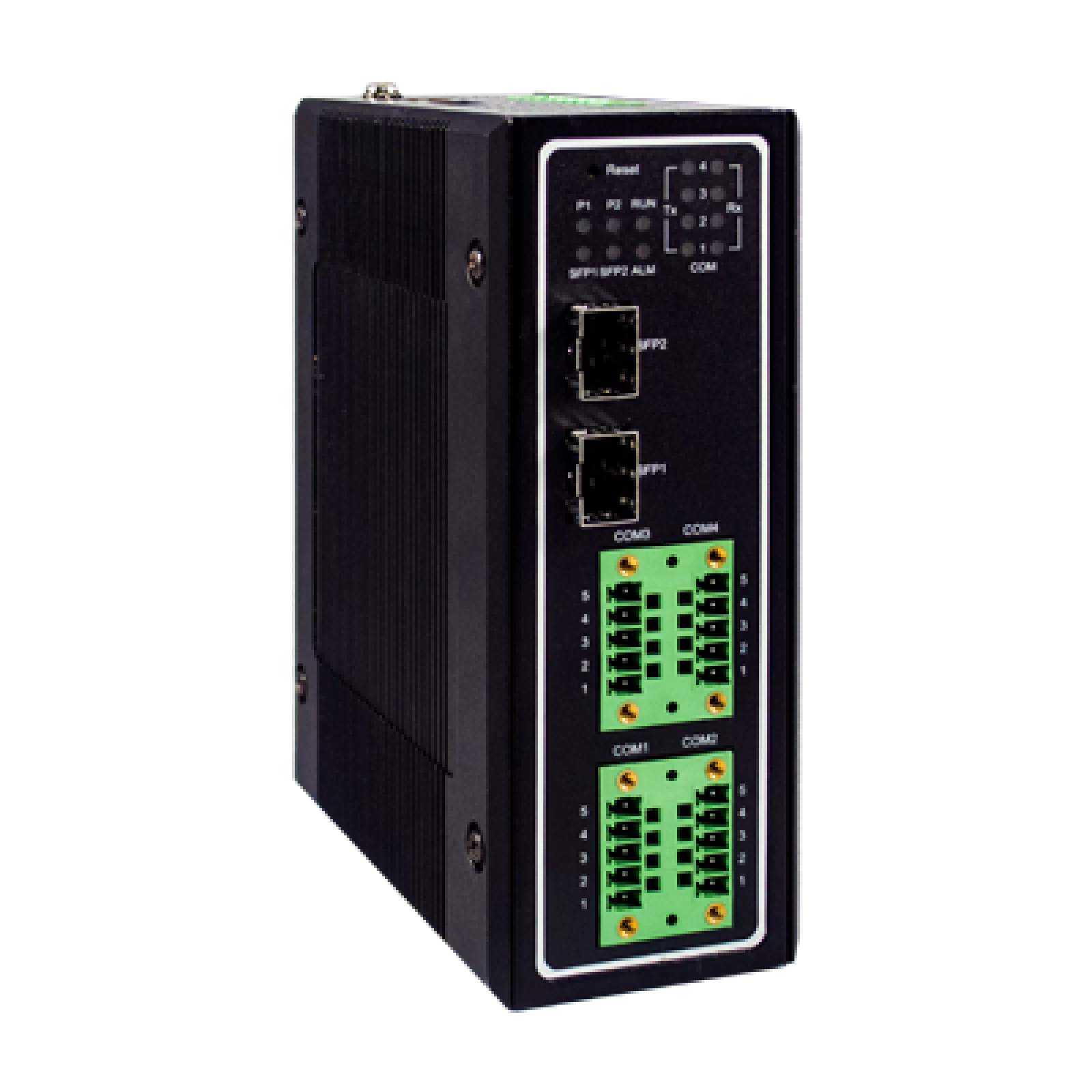

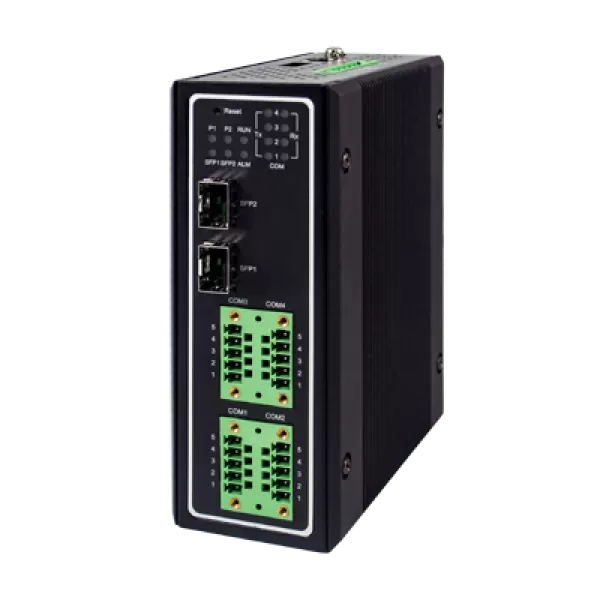

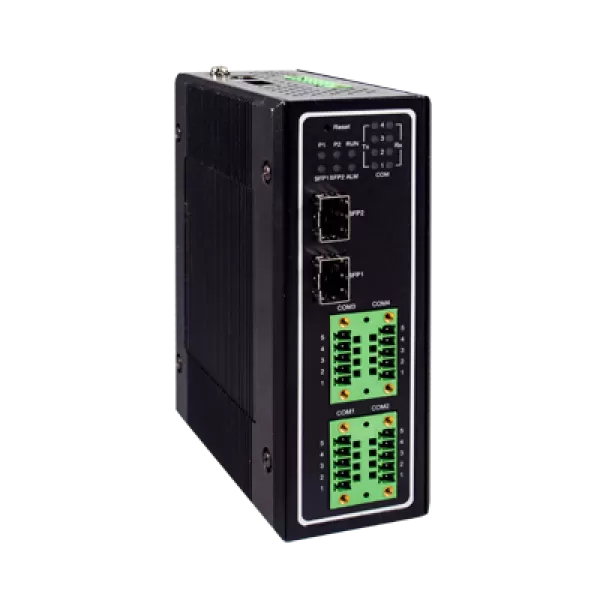

SE5904D Series

4-Port Industrial Secure Wide-Temperature Serial Device Server

  • Remotely monitor, manage, and control industrial field devices
  • Industrial EMC protection, wide temperature operation, -40°C~85°C
  • Fast-Ethernet ports or 2x 100/1000 SFP slots with RSTP Redundancy
  • 4 Software-selectable RS-232/RS-485/RS-422 serial ports, up to 921kbps
  • TCP Server/Client, UDP, Virtual COM and Tunneling modes supported
  • Embedded security with PPTP, IPsec or OpenVPN client/server
  • Isolated Redundant 12~48 VDC Power Inputs or powered (PoE models) through through the Ethernet cable (802.3af)
  • Configuration via Web Browser/ Serial Console/ Telnet/ Windows Utility
  • Rugged metal case with wall or DIN-Rail mount

Make Serial Devices Ready to the Network The Industrial Serial Device Server SE5904D is a cost effective gateway for Ethernet (TCP/IP) and serial signal communications; allowing almost any serial device to be connected to a new or existing Ethernet network. By encapsulating serial data and transporting it over Ethernet, SE5904D offers full-duplex and bi-directional data seamlessly between the four serial ports and the Ethernet network, through 2x 10/100 Ethernet ports or 2x 100/1000 SFP Fiber slots. Advanced embedded security SE5904D embeds OpenVPN and IPsec VPN, that allows you to tunnel your data securely throught the internet and prevent unauthorized control of your Serial Devices by malicious people. The integrated Rapid Spanning Tree Protocol (RSTP), allows you to add a backup Ethernet link in the event the primary one fails. Easy to Use Flexible configuration options enable this unit to be setup over Ethernet by Telnet, Web Browser, Serial Console, or our Windows Utility. Packed in a rugged metal housing for wall or DIN-Rail mount with redundant 12-48 VDC wide range power input and one relay output, SE5904D is ideal for almost any industrial and manufacturing automation process. Atop Virtual COM software provides a virtual environment for applications when accessing SE5904D through TCP. Specially Designed for Automation Fields and Harsh Environments In industrial and manufacturing automation fields, SE5904D is used as a field device to connect the Ethernet through TCP/IP protocol directly. It is also specially designed for conjunction with PLCs, HMIs, Barcode Scanners, Data Terminals, and much more. Its design protects it from very harsh EMC and environmental conditions, making it a cost-effective choice for advanced applications. Rugged and flexible for advanced developments SE5904D embeds high EMC protection, wide temperature operation, programming and installation flexibility in one device. PoE versions can be powered through Power-over-Ethernet (PoE 802.3af), without additional cabling and power supply. SDK versions allow you to make use of the powerful hardware and develop your own applications on top of Atop’s reliable SDK.
Network Interface
Speed IEEE 802.3 10BaseT IEEE 802.3u 100BaseT(X) IEEE 802.3u for 100Base-X (SFP version only) IEEE 802.3z for 1000Base-X (SFP version only)
PoE standard supported IEEE 802.3 af (-PoE version only)
LAN Mode Dual Subnets or Network Redundancy
Connector ports 2x 10/100BASE-T(X) RJ-45 or 2x 100/1000 Base-X SFP Slots (SFP version)
Serial Interface
Connector 4x D-Sub9 RS-232/422/485 software selectable (DB models) or 4x 5.08mm 5-Pin Terminal block RS-232/422/485 sw selectable (TB models)
Baud Rate 1,200 ~ 921,600 bps software selectable
Data Bits 7, 8 software selectable
Stop Bits 1, 2 software selectable
Flow Control None, Xon/Xoff, RTS/CTS
Isolation 3kV (Sis versions only)
Other Interfaces
USB Ports 1
Speed USB 2.0
Connector USB A Type
Software
Protocols IPv4, ICMP, TCP, UDP, DHCP Client, SNMPv1,v2c,v3, HTTP, HTTPS, Telnet, SMTP/TLS, RFC2217, 802.1D-2004 RSTP, Security through OpenVPN (client/server) or IPsec (host-to-host or host-to-side) with up to 37.9Mbps VPN throughput, and PPTP
Configuration Atop Management Utility, Web UI, Telnet, Serial Console
VirtualCOM Windows/Linux redirection software
Link Modes - TCP Client Single destination or VirtualCOM
Link Modes - TCP Server 4 Connections; VirtualCOM or reverse Telnet
Link Modes - UDP Up to 4 Ranges IP
Power Value
Input Voltage Dual 12 - 48VDC (non-PoE Models); or through Ethernet Cable (PoE versions)
Input Current (@ 12VDC) 0.65 A @ 12 VDC
Power Consumption Approximately 8 W (Max)
Connector 7-Pin 5.08mm Lockable Terminal Block
Power Redundancy Yes
Reverse Polarity Protection Yes
Relay Output 1A @ 30 VDC (normal open)
Physical Characteristics Value
Housing IP30 SPCC housing
Dimension (W x H x D) 55 x 145 x 113 mm
Weight 1,000g
Installation DIN-Rail , Wall mount (optional kit)
Reset Button Yes
Environmental Limits
Operating Temperature -40°C~85°C (-40°F~185°F)
Storage Temperature -40°C~85°C (-40°F~185°F)
Ambient Relative Humidity 5%~95%, 55°C (Non-condensing)
Certification Standard
Safety IEC/EN 61010-1, UL61010-1, IEC/EN 61010-2-201, UL61010-2-201, EN62368-1
EMC FCC Part 15, Subpart B, Class A EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-2, EN 61000-6-4
Standard Item Test Value Level
IEC 61000-4-2 ESD Contact Discharge ±6kV 3
IEC 61000-4-2 ESD Air Discharge ±8kV 3
IEC 61000-4-3 RS 80-1000MHz 10 V/m 3
IEC 61000-4-3 RS 1.4-2.0GHz 3 V/m 2
IEC 61000-4-3 RS 2.0-2.7GHz 1 V/m 1
IEC 61000-4-4 EFT DC Power Port ±2.0kV 3
IEC 61000-4-4 EFT Signal Port ±2.0KV 4
IEC 61000-4-5 Surge DC Power Port Line-to Line±1.0KV 3
IEC 61000-4-5 Surge DC Power Port Line-to Earth±1.0KV 2
IEC 61000-4-5 Surge Signal Port Line-to Earth±2.0K 3
IEC 61000-4-6 CS 0.15-80MHz 10 Vrms 3
IEC 61000-4-8 PFMF Enclosure 30 A/m 4
Certification Standard
Shock MIL-STD-810G Method 516.7
Drop (Freefall) MIL-STD-810G Method 516.7
Vibration MIL-STD-810G Method 514.7
RoHS Yes
MTBF 14.56 Years (according to MIL-HDBK-217F)
Warranty 5 Years
MODEL NAME PART NUMBER DESCRIPTION ETHERNET PORTS SERIAL PORTS
SE5904D-4P-DB 1P1SE5904D0004G Ind. 4-Port Serial Device Server, 10/100BASET(X), DB9 2 (RJ45) 4 (DB9)
SE5904D-4P-TB 1P1SE5904D0005G Ind. 4-Port Serial Device Server, 10/100BASET(X), TB5 2 (RJ45) 4 (TB)
SE5904D-4P-Sis 1P1SE5904D0006G Ind. 4-Port Ser. Dev. Serv, 10/100BASET(X), 2kV Isolated 2 (RJ45) 4 (TB)
SE5904D-4P-PoE-DB 1P1SE5904D0001G Ind. 4-Port Ser. Dev. Serv, 10/100BASET(X)with PoE, DB9 2 (RJ45) 4 (DB9)
SE5904D-4P-PoE-TB 1P1SE5904D0002G Ind. 4-Port Ser. Dev. Serv, 10/100BASET(X)with PoE, TB5 2 (RJ45) 4 (TB)
SE5904D-4P-PoE-Sis 1P1SE5904D0003G Ind. 4-Port Ser. Dev. Serv, RJ45, PoE, 2kV Isolated 2 (RJ45) 4 (TB)
SE5904D-4P-G-DB-SFP 1P1SE5904DG001G Ind. 4-Port Ser. Device Server, 100/1000BASEX SFF, DB9 2 (SFP) 4 (DB9)
SE5904D-4P-G-TB-SFP 1P1SE5904DG002G Ind. 4-Port Serial Device Server, 100/1000BASEX SFP, TB5 2 (SFP) 4 (TB)
SE5904D-4P-G-Sis-SFP 1P1SE5904DG003G Ind. 4-Port Serial Serv, 100/1000BASEX SFP, 2kV Isolated 2 (SFP) 4 (TB)
MODEL NAME PART NUMBER DESCRIPTION
SDR-75-24 50500752240001G 75W/3.2A DIN-Rail 24VDC power supply with 88~264VAC / 124~370VDC input
CBL-RJ45(8P)-DB9(F)-90-C 50891971G 8-pin RJ45-DB9 debug cable, 90cm
GDC-120 59906861G 120mm copper woven grounding cable
ADP-DB9(F)-TB5 59906231G Female DB9 to Female 3.81 TB5 Converter
WMK-450-Black 70100000000052G Aluminum wall mount kit
AXGD-5854-0513 522AXGD5854001G SFP Transceiver, 1250Mbps, 850nm, Multi-mode, 550m, 3.3V, -40°C to +85°C, DDMI
AXGD-1354-0523 522AXGD1354001G SFP Transceiver, 1250Mbps, 1310nm, Multi-mode, 2km, 3.3V, -40°C to +85°C, DDMI
AXGD-1354-0533 522AXGD1354011G SFP Transceiver, 1250Mbps, 1310nm, Single-mode, 10km, 3.3V, -40°C to +85°C, DDMI
AXGD-3354-0593 522AXGD3354001G SFP Transceiver, 1250Mbps, 1310nm, Single-mode, 40km, 3.3V, -40°C to +85°C, DDMI
