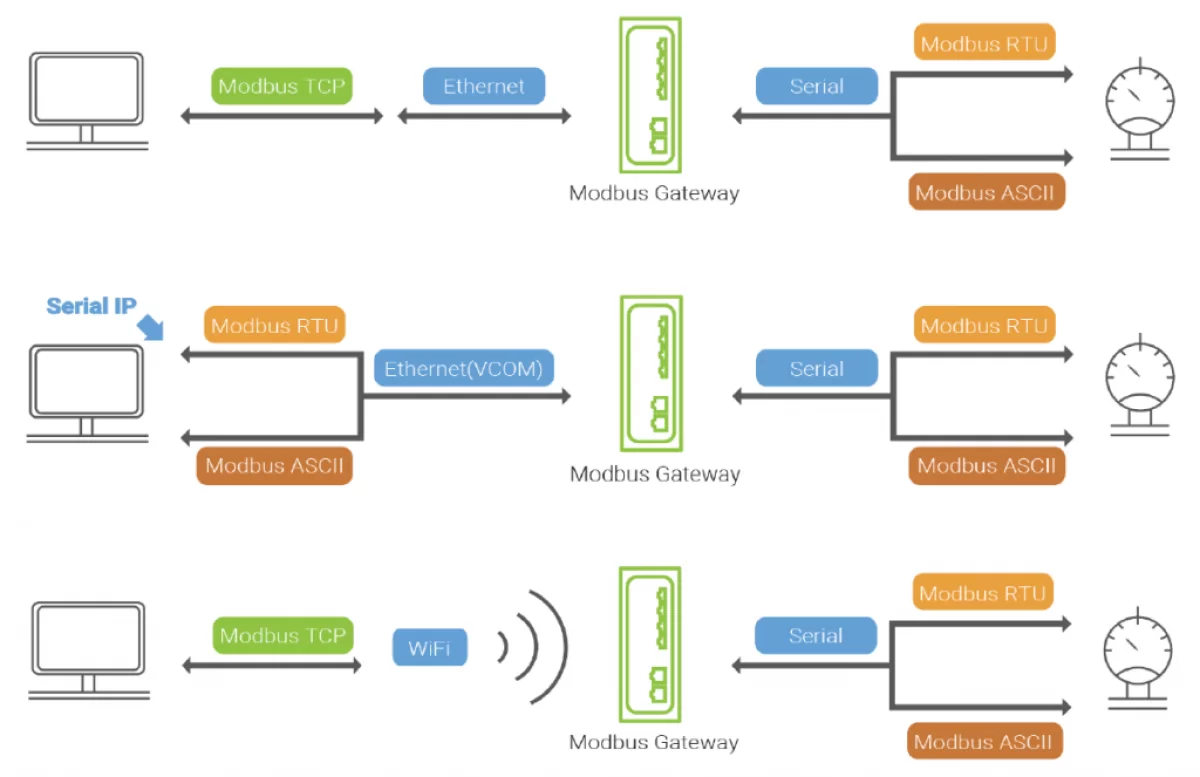

Diverse Hardware, Integrated Wireless, Serial and Ethernet MW5501C Industrial Wireless Modbus Gateway will provide you a flexible platform to convert bi-directionally Modbus RTU/ASCII/TCP trough wired and wireless Ethernet Networks. It supports IEEE802.11 b/g/n standards over 2.4GHz for Wireless connectivity, wired Ethernet through one RJ45 port and supports the four most commonly used communication standards in Serial: RS-232/485 and 422 on one DSub-9 / 5-Pin Terminal Block Combo.The ease-of-use configuration utility provided with Modbus Gateway can quickly select the hardware interface, and easily switch to the existing communication infrastructure. Switching between Modbus Protocols Modbus Gateway supports the standard Modbus protocol and is capable of converting any Modbus protocols between Modbus TCP, Modbus RTU, and Modbus ASCII for all supported hardware interfaces. Modbus ID Routing Modbus Gateway supports various types of hardware communication interfaces, Modbus protocol conversion, and Modbus ID routing. Therefore the Modbus Gateway can integrate your existing and complex Modbus hardware configuration into a simple network that can be easily managed.

Network Interface
Speed	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X)
Connector ports	1x 10/100 BASE-TX RJ-45

Serial Interface
Connector	D-Sub9 RS-232/422/485 software selectable (DB models) 5.08mm 5-Pin Terminal block RS-232/422/485 sw selectable (TB models)
Mode	RS-232/422/485 software selectable
Ports	1
Baud Rate	110 ~ 921,600 bps software selectable
Parity	None, Odd, Even, Space, Mark
Data Bits	5, 6, 7, 8 software selectable
Stop Bits	1, 2 software selectable
Flow Control	None, Xon/Xoff, RTS/CTS (RS-232 only)

Wireless Characteristics
Wireless PCI-e Module	Atheros AR9382
Tx / Rx	1T1R MIMO (1 x 1 with MCS 0-7)
Standard Conformance	802.11b, 802.11g, and 802.11n
Operating Frequency
	2.4Ghz
United States (FCC)	2412-2462(20Mhz)/2422-2452(40Mhz)
Europe (ETSI)	2412-2472(20Mhz)/2422-2462(40Mhz)
Data Rate
802.11b	1, 2, 5.5 and 11Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n (20MHz bandwidth)	20MHz bandwidth: 1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.)
802.11n (40MHz bandwidth)	40MHz bandwidth: 1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI (Max.)
Antenna (2.4GHz)
Gain	3 dBi
Connector	SMA(R) Female
Output Power (2.4GHz)
802.11b	+14dBm
802.11g	+17dBm @ 6, 9, 12,18,24Mbps / +17dBm @ 36Mbps / +16dBm @ 48Mbps / +16dBm @ 54Mbps
802.11n 2.4GHz/HT20	+16dBm @ MCS 0 +16dBm @ MCS 4 +16dBm @ MCS 1 +16dBm @ MCS 5 +16dBm @ MCS 2 +16dBm @ MCS 6 +16dBm @ MCS 3 +15dBm @ MCS 7
802.11n 2.4GHz/HT40	+15dBm @ MCS 0 +15dBm @ MCS 4 +15dBm @ MCS 1 +15dBm @ MCS 5 +15dBm @ MCS 2 +15dBm @ MCS 6 +15dBm @ MCS 3 +14dBm @ MCS 7

Standard	Data Rate	IEEE Spec(1 Rx dBm)
802.11b	1M	not specified
802.11b	5.5M	not specified
802.11b	11M	not specified
802.11g	6M	-82
802.11g	9M	-81
802.11g	12M	-79
802.11g	18M	-77
802.11g	24M	-74
802.11g	36M	-70
802.11g	48M	-66
802.11g	54M	-65
802.11n HT20	MCS0	-82
802.11n HT20	MCS1	-79
802.11n HT20	MCS2	-77
802.11n HT20	MCS3	-74
802.11n HT20	MCS4	-70
802.11n HT20	MCS5	-66
802.11n HT20	MCS6	-65
802.11n HT20	MCS7	-64
802.11n HT40	MCS0	-79
802.11n HT40	MCS1	-76
802.11n HT40	MCS2	-74
802.11n HT40	MCS3	-71
802.11n HT40	MCS4	-67
802.11n HT40	MCS5	-63
802.11n HT40	MCS6	-62
802.11n HT40	MCS7	-61
802.11b/g/n HT20	MCS0	-82
802.11b/g/n HT20	MCS1	-79
802.11b/g/n HT20	MCS2	-77
802.11b/g/n HT20	MCS3	-74
802.11b/g/n HT20	MCS4	-70
802.11b/g/n HT20	MCS5	-66
802.11b/g/n HT20	MCS6	-65
802.11b/g/n HT20	MCS7	-64
802.11b/g/n HT40	MCS0	-79
802.11b/g/n HT40	MCS1	-76
802.11b/g/n HT40	MCS2	-74
802.11b/g/n HT40	MCS3	-71
802.11b/g/n HT40	MCS4	-67
802.11b/g/n HT40	MCS5	-63
802.11b/g/n HT40	MCS6	-62
802.11b/g/n HT40	MCS7	-61

Software
Protocols	IPv4, ICMP, TCP, UDP, DHCP Client, SNMPv1,v2c,v3, SMTP, HTTP, DNS, NTP, RADIUS, RFC2217, WPS, SysLog, Modbus TCP, Modbus RTU, Modbus ASCII
Wireless Security	WEP, WPA, WPA2, TKIP, AES, 802.1x
Configuration	Atop Management Utility, Web UI, Telnet, Serial Console
VirtualCOM	Windows/Linux redirection software
Modbus - TCP Client	Maximum 16 Modbus TCP client connections, Modbus RTU/ASCII via VirtualCOM
Modbus - TCP Server	Maximum 64 Modbus TCP connections; Modbus RTU/ASCII via VirtualCOM or reverse Telnet
Modbus - RTU/ASCII	Maximum 16 devices per COM port.

Power	Value
Input Voltage	9 - 48 VDC
Input Current	0.65 A @ 9 VDC
Power Consumption	Approximately 5.85 W (Max)
Connector	3-Pin 5.08mm Lockable Terminal Block
Reverse Polarity Protection	Yes

Physical Characteristics	Value
Housing	IP30 SPCC housing
Dimension (W x H x D)	47 mm x 110 mm x 90mm
Weight	500g
Installation	DIN-Rail , Wall mount (optional kit)
Reset Button	Yes
Wi-Fi Direct(P2P) Button	Yes

Environmental Limits
Operating Temperature	-10°C ~ 60°C (14°F ~ 140°F)
Storage Temperature	-40°C~85°C (-40°F~185°F)
Ambient Relative Humidity	5%~95%, 55°C (Non-condensing)

Certification	Standard
EMC	EN55032, EN55024, EN 301489-1 V2.2.0; EN301489-17 V3.2.0; FCC 15B (Class A)
Radio	FCC 15C 15.247, FCC 15E 15.407, EN 301893 V2.1.1, EN 300328 V2.1.1
EMF	EN 62311: 2008, EN 50385: 2002

Standard	Item	Test	Value	Level
IEC 61000-4-2	ESD	Contact Discharge	±8kV	4
IEC 61000-4-2	ESD	Air Discharge	±15kV	4
IEC 61000-4-3	RS	Radiated (enclosure)	10 V/m	3
IEC 61000-4-4	EFT	AC Power Port	±2.0kV	3
IEC 61000-4-4	EFT	LAN Port	±2.0kV	4
IEC 61000-4-5	Surge	AC Power Port (L-2-L)	±1.0KV	3
IEC 61000-4-5	Surge	AC Power Port (L-2-E)	±2.0KV	3
IEC 61000-4-5	Surge	LAN Port (L-2-E)	±2.0KV	3
IEC 61000-4-6	CS	Conducted (enclosure)	10 V rms	3
IEC 61000-4-8	PFMF	Enclosure	AC 50/60 Hz 10 A/m	3

Certification	Standard
Safety	UL60950-1 , CB IEC/EN60950-1, IEC/EN 62368-1
Shock	IEC 60068-2-27
Drop (Freefall)	IEC 60068-2-32
Vibration	IEC 60068-2-64
MTBF	22 Years (MIL-HDBK-217F)
Warranty	5 Years
RoHS II	Yes

MODEL NAME	PART NUMBER	DESCRIPTION	ETHERNET	SERIAL

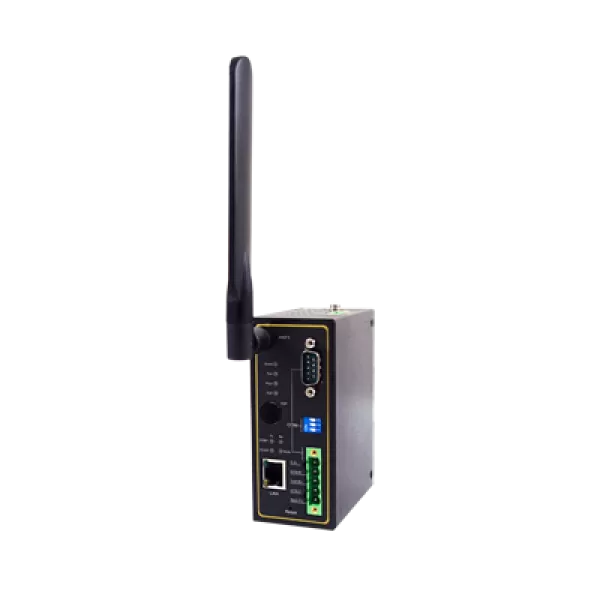

MW5501C	1P1MW5501C0001G	1-port 802.11b/g/n Industrial Wireless Modbus Gateway supporting Wifi-Direct, combo TB - DB9 port	1	1 (TB/DB9) combo
