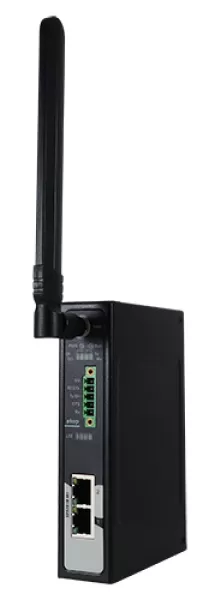

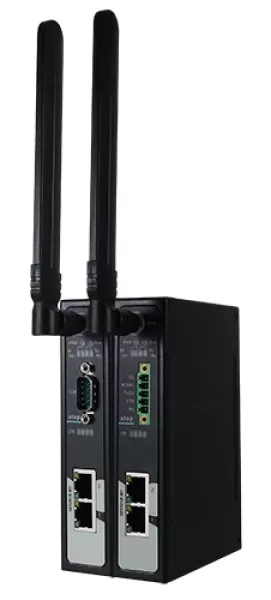

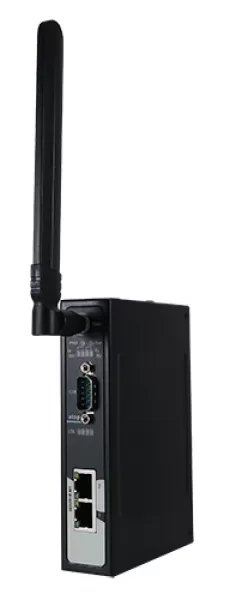

SE5201B-M1
Low Power Consumption Gateway LTE Cat-M1
- Comprehensive Connectivity - Global LTE Cat M1 & Cat NB2 with GSM fallback - Support LTE-M 450 MHZ – EU Version - 2x 100 Base TX RJ 45,1 RS 232/485 Ports - 1 DI & 1 DO I/O Interface
- Reliable & Trustworthy Platform - Dual SIM auto Failover - Secure VPN and Firewall Isolation - LED indicators for signal reception
- Quick Deployment & Management - ATOP NIMBL Device Management
- Compact and Robust Design - Low standby Power Consumption (~100 mW) - Dimensions: 136 x 95 x 30 mm - Industrial EMC Protection - -30°C to +75°C Operation
- Other Features - SD Slot for Configuration and Storage - GNSS Posting and Optional TPM Module - Schedulable Power Management
- High Quality Guaranteed - Made in Taiwan with 5 Years Warranty
ATOP SE5201B-M1 IoT gateway offers multi-mode connectivity, supporting the 3GPP Release 14 protocol standards (LTE Cat M1/LTE Cat NB2/EGPRS). In an LTE Cat M1 network, it can achieve a maximum uplink speed of 1119 kbps and a maximum downlink speed of 588 kbps. Featuring low standby power consumption, schedulable power management, high EMC protection, wide-temperature operation, dual SIM failover, and rugged metal housing, this gateway is ideal for IoT applications that demand environmental resilience, redundancy, and power efficiency.
Low Standby Power Consumption The SE5201B-M1 is ideal for a wide range of low-throughput, ultra-low power consumption applications, including industrial sensors and smart metering, agriculture automation and more. These devices periodically wake up to transmit small amounts of data before returning to sleep mode. Designed with efficiency in mind, the SE5201B-M1 also helps you save on monthly ISP fee.
Expandable SD Storage SE5201B-M1 reserves the flexibility to extend its storage capacity through a built- in SD slot, so you can store more data on the IoT gateway for work efficiency as well.
Exceptional Security Integrating Firewall, Zone forwarding, and VPN functions, ATOP SE5201B-M1 allows you to connect your industrial network to the internet without fearing intrusions to your organization data.
Endurance of Harsh Environments ATOP SE5201B-M1 is proven to run at its maximum loading in the harshest EMC and climate environments. APPLICATION CASE

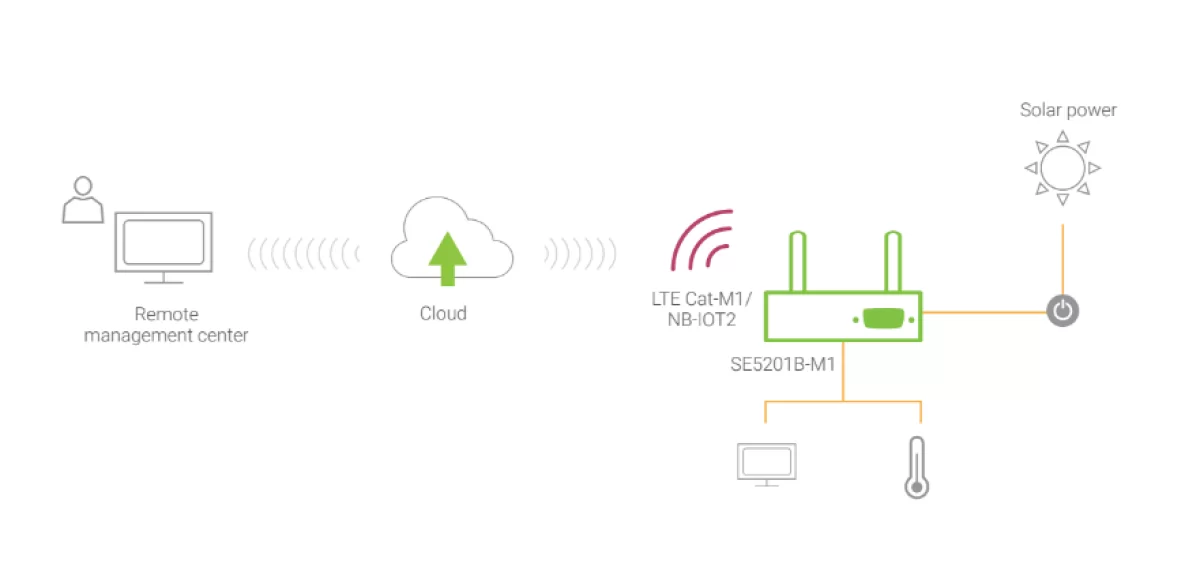

As a Low Power Consumption IoT Gateway SE5201B-M1 can act as a low power consumption gateway. Through its smart power management mechanism, the device switches to sleep mode or hibernation mode during non-service phases, and can be woken via scheduled management policies to serve functions when needed. It is especially suited where power supply is limiting, such as in systems powered by solar batteries.
LTE-M 450MHz IoT Gateway for Suburban, Indoor, and Basement LTE Signal-Challenged IoT Applications Introducing our advanced SE5201B-M1 LTE-M 450MHz IoT Gateway, designed specifically to address LTE signal challenges in suburban, indoor, and basement environments. This powerful gateway ensures reliable connectivity for your IoT applications, even in areas where LTE signals are typically weak or unreliable.
Low Standby Power Consumption The SE5201B-M1 is ideal for a wide range of low-throughput, ultra-low power consumption applications, including industrial sensors and smart metering, agriculture automation and more. These devices periodically wake up to transmit small amounts of data before returning to sleep mode. Designed with efficiency in mind, the SE5201B-M1 also helps you save on monthly ISP fee. Expandable SD Storage SE5201B-M1 reserves the flexibility to extend its storage capacity through a built- in SD slot, so you can store more data on the IoT gateway for work efficiency as well. Exceptional Security Integrating Firewall, Zone forwarding, and VPN functions, ATOP SE5201B-M1 allows you to connect your industrial network to the internet without fearing intrusions to your organization data. Endurance of Harsh Environments ATOP SE5201B-M1 is proven to run at its maximum loading in the harshest EMC and climate environments. APPLICATION CASE As a Low Power Consumption IoT Gateway SE5201B-M1 can act as a low power consumption gateway. Through its smart power management mechanism, the device switches to sleep mode or hibernation mode during non-service phases, and can be woken via scheduled management policies to serve functions when needed. It is especially suited where power supply is limiting, such as in systems powered by solar batteries. LTE-M 450MHz IoT Gateway for Suburban, Indoor, and Basement LTE Signal-Challenged IoT Applications Introducing our advanced SE5201B-M1 LTE-M 450MHz IoT Gateway, designed specifically to address LTE signal challenges in suburban, indoor, and basement environments. This powerful gateway ensures reliable connectivity for your IoT applications, even in areas where LTE signals are typically weak or unreliable.| Hardware Specifications | |
|---|---|
| Model Name | SE5201B-M1 |
| Cellular Interfaces | |
|---|---|
| Standards | LTE Cat M1 & Cat NB2 with GSM fallback |
| Ethernet Interfaces | |
|---|---|
| Standards | 802.3 for 10BaseT(X) 802.3u for 100BaseT(X) |
| Ports | 2 x RJ-45 10/100 BaseT(X), 1.5kV isolation |
| GNSS | |
|---|---|
| Standards | GPS/GLONASS/BeiDou/Galileo/QZSS |
| Serial Interfaces | |
|---|---|
| Connector Type | 9-Pin D-Sub or 5-Pin Terminal Block |
| Ports | 1 x RS-232/RS-485-2W, software selectable |
| Baud Rate | 1200 to 460,800 bps |
| Parity | None, Odd, Even |
| Data Bits | 5, 6, 7, 8, software selectable |
| Stop Bits | 1, 2, software selectable |
| Flow Control | None, Xon/Xoff, RTS/CTS (RS-232 only) |
| Terminal Resistor (Ω) | 120 |
| Pull High/Low Resistor (Ω) | On: 1K; Off: 100K |
| External I/O Interfaces (SE5201B only) | |
|---|---|
| Digital Input & Output | 1 x DI, Photo coupled isolated (5VDC) 1 x DO Normal Open Digital Relay Output (1A@DC 24V) |
| Default/Reset Button | 1 key |
| Mode Button | 1 key |
| SIM card slots | 2 push-pull SIM card holder |
| SD Slot | 1x Micro SD slot |
| LED Indicators | |
|---|---|
| Power LED | 1x Green LED |
| Run LED | 1x Green LED |
| COM LED | 1x Tx Green LED; 1x Rx Green LED |
| DI/DO LED | 1x DI LED; 1x DO Green LED |
| LTE Signal | 4X Green LED |
| Antennas | |
|---|---|
| Cellular | 1 x SMA(M) Antenna for LTE Cat.M1. |
| GNSS (Optional) | 1 x Wide-Band |
| Power Characteristics | |
|---|---|
| Connector Type | Terminal Block |
| Rated Voltage | 9 to 48 VDC |
| Input Voltage | 9 to 48 VDC |
| Power Consumption (SE5201B only) | Idle < 3W@12VDC; Hibernate < 100mW@12VDC |
| Reverse Polarity Protection | Yes |
| Physical Characteristics | |
|---|---|
| Housing | Metal housing, IP30 Protection |
| Dimension (W x H x D) | 136 x 95 x 30 mm |
| Weight | 550g |
| Installation | DIN-Rail, Wall mount (Optional) |
| Reset Button | Yes |
| Environmental Limits | |
|---|---|
| Operating Temperature | -30 to +75 °C |
| Storage Temperature | -40 to + 85 °C |
| Ambient Relative Humidity | 5% to 95% (non-condensing) |
| Ingress Protection Rating | IP30 |
| Software Specifications | |
|---|---|
| Protocols | TCP/IP, UDP, ARP, DHCP, SMTP, SNMP, Https, SNMP v1/v2/v3 |
| Security | OpenVPN, IPSEC, L2TP |
| Virtual COM | Yes |
| Firewall | ACL, NAT, Port-forwarding |
| VPN | IPSEC, OpenVPN, L2TP |
| System Management | WEB, SSH, Telnet |
| Power Management | Scheduled power management - Sleep mode - Hibernation mode Multi waken-up mechanisms from sleep/hibernation modes - Timer |
| Regulatory Approvals | ||
|---|---|---|
| Safety | EN62368-1, IEC62368-1 | |
| EMC | EN55032, EN61000-6-4, EN55035, EN61000-6-2, FCC Part 15B | |
| CE | Cellular | EN301489-1/-52, EN301908-1 |
| GNSS | EN303413, EN301489-19 | |
| FCC | FCC Part 15B, Part 22H/24E/27L/90 | |
| NCC | CNS 15936/15598-1 | |
| Test | Item | Value | Level | |
|---|---|---|---|---|
| IEC 61000-4-2 | ESD | Contact Discharge Air Discharge | ±4KV ±8KV | 2 3 |
| IEC 61000-4-3 | RS | Enclosure Port | 10 (V/m) , 80-1000MHz 3 (V/m), 1.4-6.0GHz | 3 3 |
| IEC 61000-4-4 | EFT | DC Power Port Signal Port | ±1.0KV@ 5.0kHz ±1.0KV@ 5.0kHz | 2 3 |
| IEC 61000-4-5 | Surge | DC Power Port Signal Port | Line-to-Line ±0.5KV Line-to-Earth ±1.0KV Line-to-Earth ±1.0KV | 2 2 2 |
| IEC 61000-4-6 | CS | DC Power Port Signal Port | 10V, 150KHz to 80MHz, 80%AM 10V, 150KHz to 80MHz, 80%AM | 3 3 |
| IEC 61000-4-8 | PFMF | Enclosure | 30A/m (r.m.s), 50Hz or 60Hz | 4 |
| Shock | IEC 60068-2-27 | |||
| Freefall | IEC 60068-2-32 | |||
| Vibration | IEC60068-2-64 | |||
| Others | - ROHS, including 2015 amendment - REACH - TSCA (US) - TPCH (US) - Conflict mineral free | |||
| MTBF | 20 years | |||
| Warranty | 5 years | |||

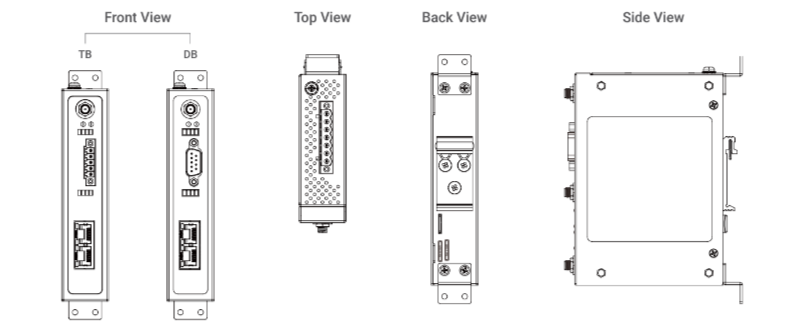

DIMENSIONS & LAYOUT
| Model | Part Number | Cellular | Band | RS232/485 Serial Port | SIM Slots |
|---|---|---|---|---|---|
| SE5201B-Q-T-M1-DB-EU | 1P1SE5201B001BG | LTE Cat.M1 | B1/B2/B3/B4/B5/B8/B12/B13/ B14/B18/B19/B20/B25/B26/B27/ B28/B31/B66/B72/B73/B85 | 1x DB9 | 2 |
| LTE NB2* | B1/B2/B3/B4/B5/B8/B12/B13/ B18/B19/B20/B25/B26/B28/B31/ B66/B72/B73/B85 | 2 | |||
| SE5201B-Q-T-M1-TB-EU | 1P1SE5201B001CG | LTE Cat.M1 | B1/B2/B3/B4/B5/B8/B12/B13/ B14/B18/B19/B20/B25/B26/B27/ B28/B31/B66/B72/B73/B85 | 1x TB5 | 2 |
| LTE NB2* | B1/B2/B3/B4/B5/B8/B12/B13/ B18/B19/B20/B25/B26/B28/B31/ B66/B72/B73/B85 | 2 | |||
| SE5201B-Q-T-M1-DB-US | 1P1SE5201B000BG | LTE Cat.M1 | B1/B2/B3/B4/B5/B8/B12/B13/ B14/B18/B19/B20/B25/B26/B27/ B28/B66/B85 | 1x DB9 | 2 |
| LTE NB2* | B1/B2/B3/B4/B5/B8/B12/B13/ B18/B19/B20/B25/B26/B28/B66/ B71/B85 | 2 | |||
| SE5201B-Q-T-M1-TB-US | 1P1SE5201B000CG | LTE Cat.M1 | B1/B2/B3/B4/B5/B8/B12/B13/ B14/B18/B19/B20/B25/B26/B27/ B28/B66/B85 | 1x TB5 | 2 |
| LTE NB2* | B1/B2/B3/B4/B5/B8/B12/B13/ B18/B19/B20/B25/B26/B28/B66/ B71/B85 | 2 | |||
| SE5201B-E-T-C1-DB | 1P1SE5201B0017G | LTE Cat.1 | B1/B3/B7/B8/ B20/B28 | 1x DB9 | 1 |
| SE5201B-E-T-C1-DB-GPS | 1P1SE5201B0019G | LTE Cat.1 | 1x DB9 | 2 | |
| SE5201B-E-T-C1-TB | 1P1SE5201B0018G | LTE Cat.1 | 1x TB5 | 1 | |
| SE5201B-E-T-C1-TB-GPS | 1P1SE5201B001AG | LTE Cat.1 | 1x TB5 | 2 | |
| SE5201B-Q-T-M1-DB-LA | Contact Headquarters | LTE Cat.M1 | B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/ B28/B66/B85 | 1x DB9 | 2 |
| Contact Headquarters | LTE NB2* | B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/ B71/B85 | 2 | ||
| SE5201B-Q-T-M1-TB-LA | Contact Headquarters | LTE Cat.M1 | B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/ B28/B66/B85 | 1x TB5 | 2 |
| Contact Headquarters | LTE NB2* | B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/ B71/B85 | 2 | ||
| *Certification pending; proceeding based on requirements. | |||||
| MODEL NAME | PART NUMBER | DESCRIPTION |
|---|---|---|
| UN315-1212(US-Y) LV6 | 50500151120003G | Y-Type (5.08 mm) adaptor, 100-240VAC input, 1.25A @ 12VDC output, US plug |
| UNE315-1212(EU-Y) LV6 | 50500151120013G | Y-Type (5.08 mm) adaptor, 100-240VAC input, 1.25A @ 12VDC output, EU plug |
| WALL MOUNT-P13 | 70100000000082G | SECC Wall mount Kit |
Datasheet
| VERSION | NAME | TIME | SIZE | DOWNLOAD |
|---|---|---|---|---|
| v1.1 | Datasheet EN | 2025-05-06 | 380.72 KB |
Hardware Installation Guide
| VERSION | NAME | TIME | SIZE | DOWNLOAD |
|---|---|---|---|---|
| v1.1 | SE5201B-M1 Hardware Installation Guide | 2024-06-11 | 5.16 MB |
Manual
| VERSION | NAME | TIME | SIZE | DOWNLOAD |
|---|---|---|---|---|
| v1.1 | SE5201B/CR5201B User Manual | 2024-05-30 | 4.87 MB |
Firmware
| VERSION | NAME | TIME | SIZE | DOWNLOAD |
|---|---|---|---|---|
| v0.17 | SE5201B-M1 Firmware | 2024-06-11 | 14.45 MB |
STP/DXF drawings
| VERSION | NAME | TIME | SIZE | DOWNLOAD |
|---|---|---|---|---|
| SE5201B-M1 D89 | 2024-06-11 | 6.35 MB | ||
| SE5201B-M1 TB5 | 2024-06-11 | 6.34 MB |
